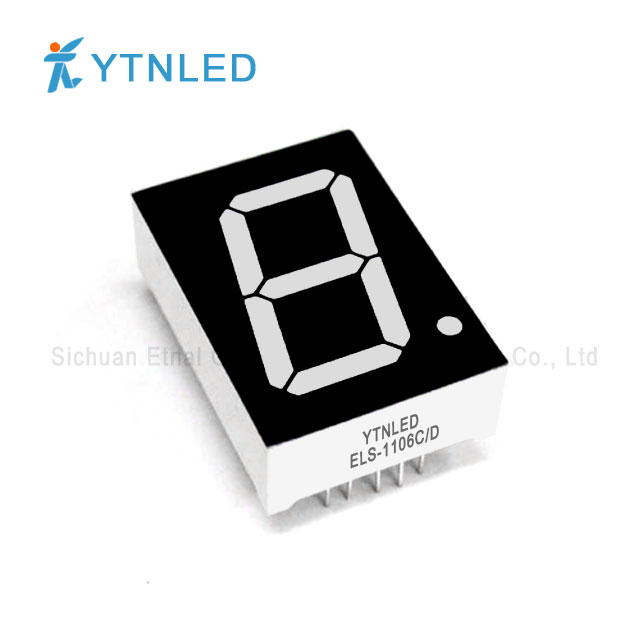

ELS-1106C-D
Features：
Application：
- High brightness
- Low power consumption
- Long lifetime
- Easy to install
Application：
- Consumer Electronics
- Industrial Equipment
- Information Display
- Medical Devices
Details
Product description
Character height:1inch.
Category:Single digit led display.
Common electrode:Common Cathode, Common Anode.
Luminous color:Red,Orange,Yellow,Olivine,Emerald,Blue,White.
Dimensions:24.0x34.0x10.5mm.
Number of pins:10pins.
Common PIN:3,8.
Surface color:Black.
Epoxy color:White.
Operating temperature:-20~80℃.
Storage temperature:-30~80℃.
Lead soldering:255℃,3seconds.
Product parameters
| Part No. | Character height | Category | Common electrode | Luminous | Color | Wavelength (nm) | Face Color | Window Color |
| ELS-1106CS | 1" inch | Single digit led display | Common Cathode | Red |
|
620-640 | Black Face | White Epoxy |
| ELS-1106DS | 1" inch | Single digit led display | Common Anode | Red |
|
620-640 | Black Face | White Epoxy |
| ELS-1106CG | 1" inch | Single digit led display | Common Cathode | Olivine |
|
565-575 | Black Face | White Epoxy |
| ELS-1106DG | 1" inch | Single digit led display | Common Anode | Olivine |
|
565-575 | Black Face | White Epoxy |
| ELS-1106CGG | 1" inch | Single digit led display | Common Cathode | Emerald |
|
515-525 | Black Face | White Epoxy |
| ELS-1106DGG | 1" inch | Single digit led display | Common Anode | Emerald |
|
515-525 | Black Face | White Epoxy |
| ELS-1106CB | 1" inch | Single digit led display | Common Cathode | Blue |
|
460-470 | Black Face | White Epoxy |
| ELS-1106DB | 1" inch | Single digit led display | Common Anode | Blue |
|
460-470 | Black Face | White Epoxy |
| ELS-1106CW | 1" inch | Single digit led display | Common Cathode | White |
|
/ | Black Face | White Epoxy |
| ELS-1106DW | 1" inch | Single digit led display | Common Anode | White |
|
/ | Black Face | White Epoxy |
| Note: The above parameters are for reference only,please prevail in kind. | ||||||||
Package dimension and internal circuit diagram (Unit : millimeters , Tolerance : ±0.25mm)
